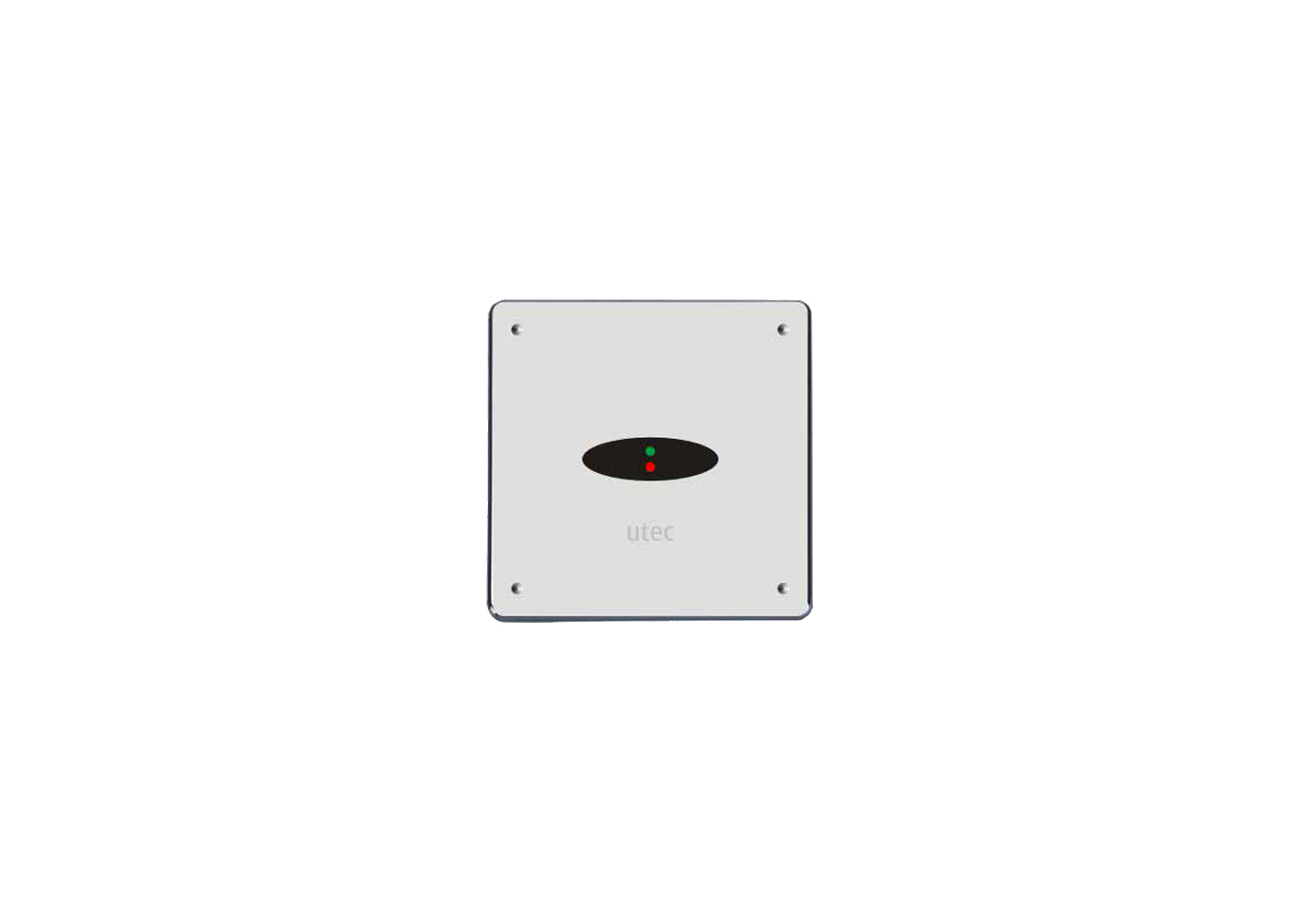

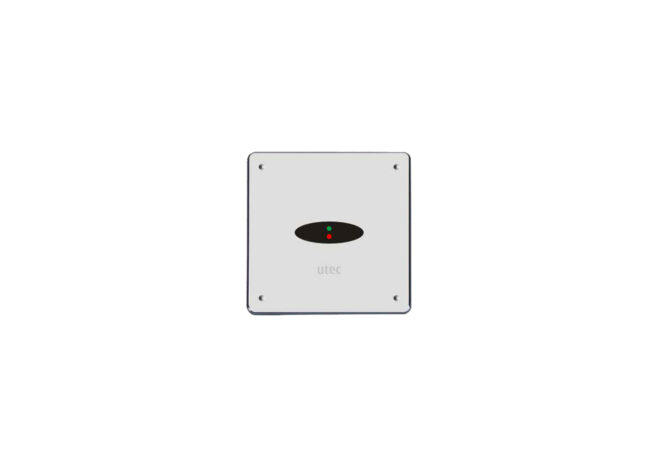

Urinal Sensor – UT-10A
Infrared based , Automatic Urinal Flush System.
- Product Features
In this model, solenoid valve is placed away from the sensor Unit- ideally in the false ceiling/shaft.
- Product Specifications
Model No. UT-10A Electrical operated External Material Durable tamper resistance Stainless Steel plate Power Supply 220 V 50 Hz AC Sensing Range Within a Range of 500mm (Adjustable) Detecting Time 5.5 Seconds Flushing Time 0 – 30 Seconds ( Adjustable) Operating Water Pressure 0.2 – 10 Bar External Size 114 mm (W) x 76 mm (D) x 114 mm (H) Solenoid Valve ABS Body G 1/2” inlet/outlet Indications While Sensing & While Flushing - Documents
