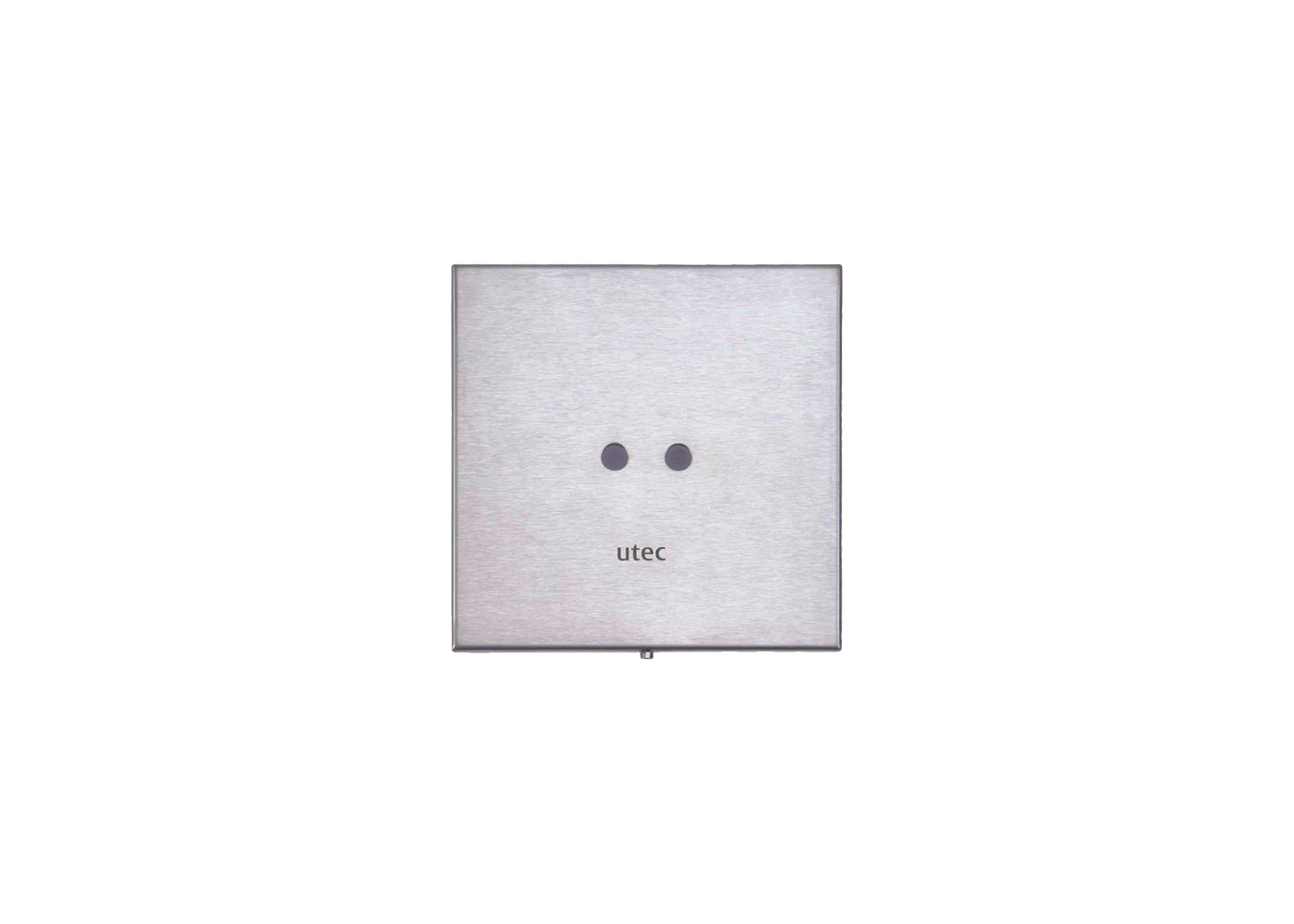

Urinal Sensor – UT-116B

Recessed electronic infrared flushing control for urinal with a vandal proof complete stainless steel plate in satin finish.

SKU: UT-116B Category:
  1. Product Features

    Solid brass valve with built-in flow control valve and strainer fitted within the outer stainless steel box.

  2. Product Specifications
     Model No.  UT-116B  UT-116C  UT-116B+C
    Battery Operated Electrically Operated Electrical Operated with Battery Backup
    External Material Screwless s/s plate Screwless s/s plate Screwless s/s plate
    Dimensions 148 X 148 mm 148 X 148 mm 148 X 148 mm
    Power 4 “AA” Alkaline Batteries AC220V/50Hz 4 “AA” Alkaline Batteries + AC220V/50Hz
    Battery life 2 year’s with 100 operations /day (Optional) Battery standby 2 year’s with 100 operations /day
    Water pressure 0.4-8 bar 0.4-8 bar 0.4-8 bar
    Detection range Automatic Automatic Automatic
    Flushing time 6 s 6 s 6 s
    Plumbing Connections G 1/2” G 1/2” G 1/2”
    Ambient temperature 1~55°C 1~55°C 1~55°C
    Power consumption in satic = 0.5 mW (DC), =3W(AC) = 0.5 mW (DC), =3W(AC) = 0.5 mW (DC), =3W(AC)
