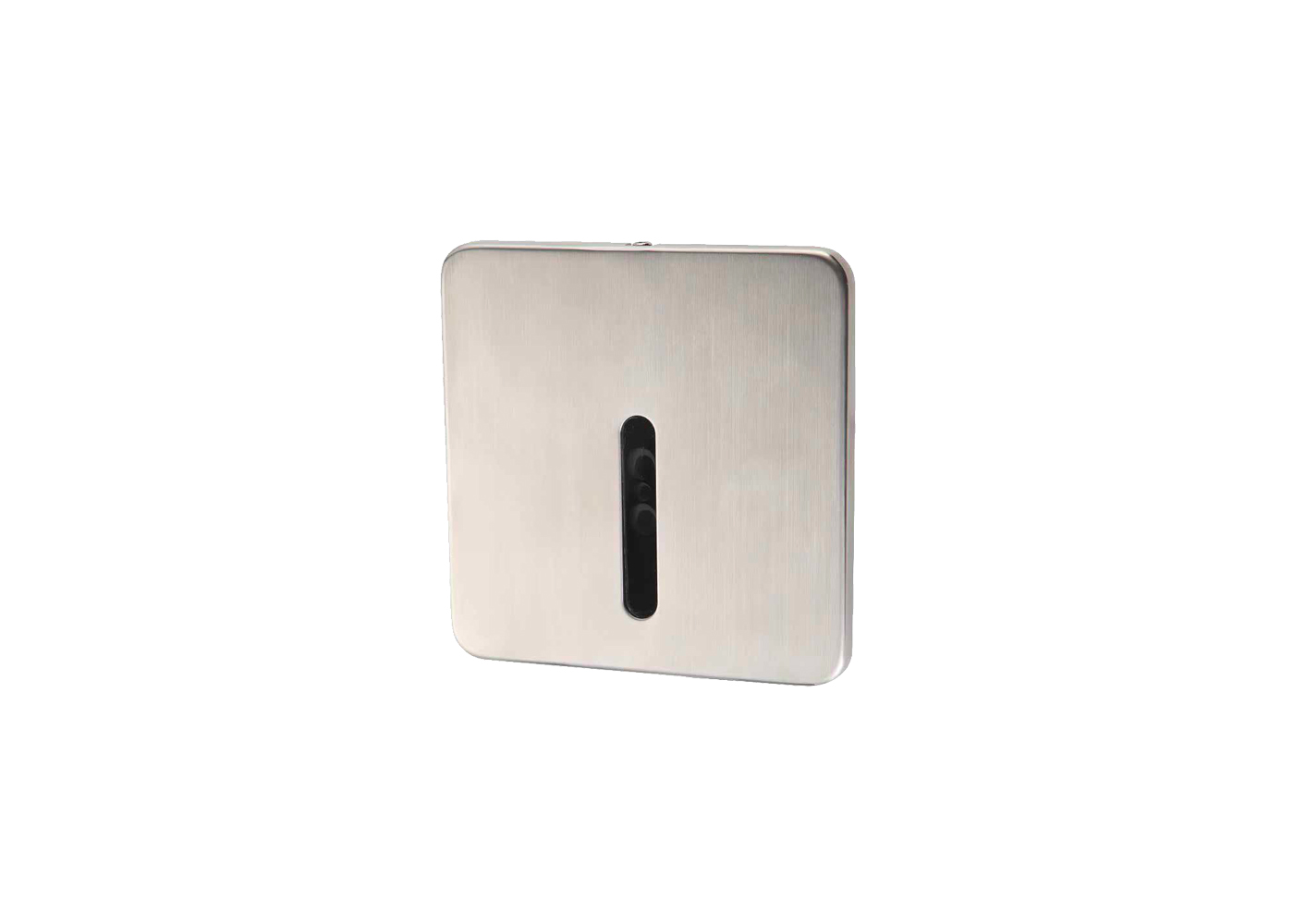

Urinal Sensor – UT-118B

Recessed electronic infrared flushing control for urinal with a vandal proof complete stainless steel plate in satin finish.

SKU: UT-118B Category:
  1. Product Features

    Solid brass valve with built-in flow control valve and strainer fitted within the outer stainless steel box.

  2. Product Specifications
     Model No. UT-118B UT-118C UT-118B+C
    Battery OperatedElectrically OperatedElectrical Operated with Battery Backup
    External MaterialScrewless s/s plateScrewless s/s plateScrewless s/s plate
    Dimensions120 X 120 mm120 X 120 mm120 X 120 mm
    Power4 “AA” Alkaline BatteriesAC220V/50Hz4 “AA” Alkaline Batteries + AC220V/50Hz
    Battery life2 year’s with 100 operations /day(Optional) Battery standby2 year’s with 100 operations /day
    Water pressure0.4-8 bar0.4-8 bar0.4-8 bar
    Detection rangeAutomaticAutomaticAutomatic
    Flushing time6 s6 s6 s
    Plumbing ConnectionsG 1/2”G 1/2”G 1/2”
    Ambient temperature1~55°C1~55°C1~55°C
    Power consumption in satic= 0.5 mW (DC), =3W(AC)= 0.5 mW (DC), =3W(AC)= 0.5 mW (DC), =3W(AC)
