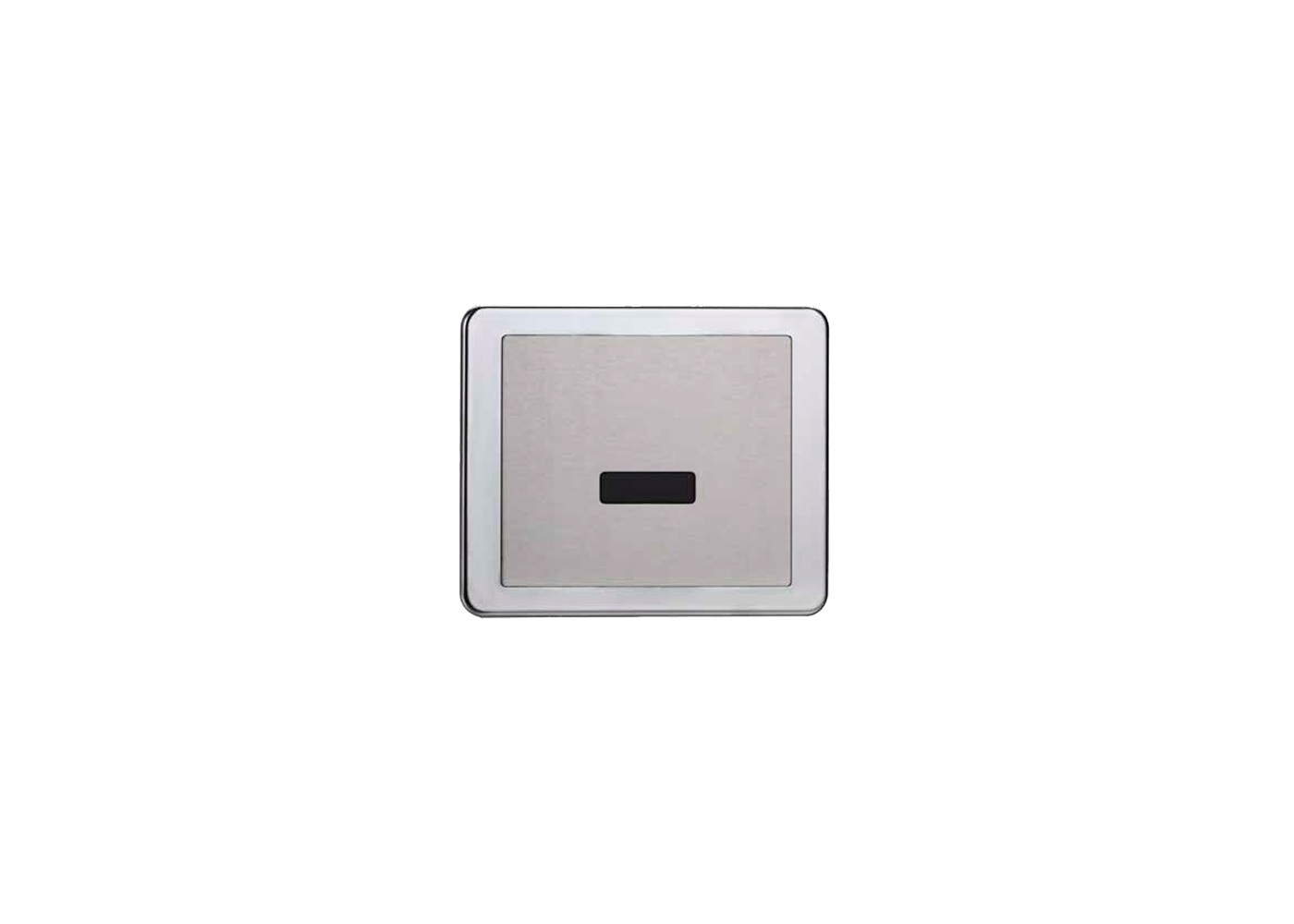

Urinal Sensor – UT-11A

Recessed electronic infrared flushing control for urinal with a vandal proof complete stainless steel plate in satin finish.

SKU: UT-11A Category:
  1. Product Features

    ABS valve within the High grade ABS body box

  2. Product Specifications
     Model No.  UT-11A  UT-11S
    Battery Operated Electrically Operated
    External Material Screwless s/s plate Screwless s/s plate
    Dimensions 155 X 130 mm Dimensions 155 X 130 mm
    Power 4 “AA” Alkaline Batteries AC operated
    Battery life 2 year’s with 100 operations /day NA
    Water pressure 0.4-8 bar Water pressure 0.4-8 bar
    Detection range Automatic Detection range Automatic
    Flushing time 6 s Flushing time 6 s
    Plumbing Connections G 1/2” Plumbing Connections G 1/2”
    Ambient temperature 1~55°C Ambient temperature 1~55°C
    Power consumption in satic = 0.5 mW (DC), =3W(AC) Power consumption in satic = 0.5 mW (DC), =3W(AC)
